Sheet-Fed Rotary Hot Foil Stamping Machine
Our sheet-fed rotary hot foil stamping machine is designed for high-volume hot foil stamping of premium packaging, mainly for cigarette packaging. It supports precise registration, large-area stamping and fine-pattern stamping in sheet-fed production.
For: Sheet-fed packaging producers requiring high-speed, high-precision conventional or holographic hot foil stamping.
Solves: Provides rotary pressure, accurate registration and efficient foil feeding for demanding sheet-fed packaging applications.
Key Capabilities
- Maximum production speed up to 8,000 sheets/hour
- Configurable with two or more hot stamping stations
- Inter-station registration accuracy can reach ±0.05 mm under specified conditions
- Fine-line capability down to 0.05 mm under specified conditions
- Foil consumption may be reduced by approximately 20% compared with conventional equipment, depending on pattern layout and operating conditions

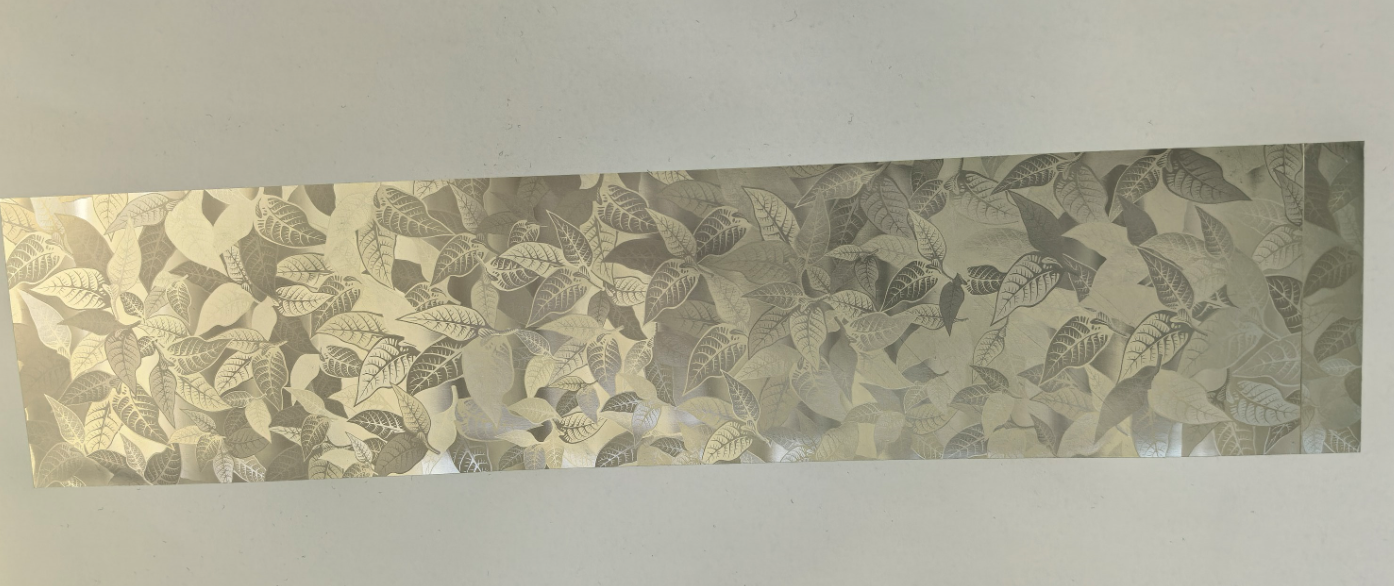

- Designed to improve large-area stamping uniformity and reduce the risk of air entrapment

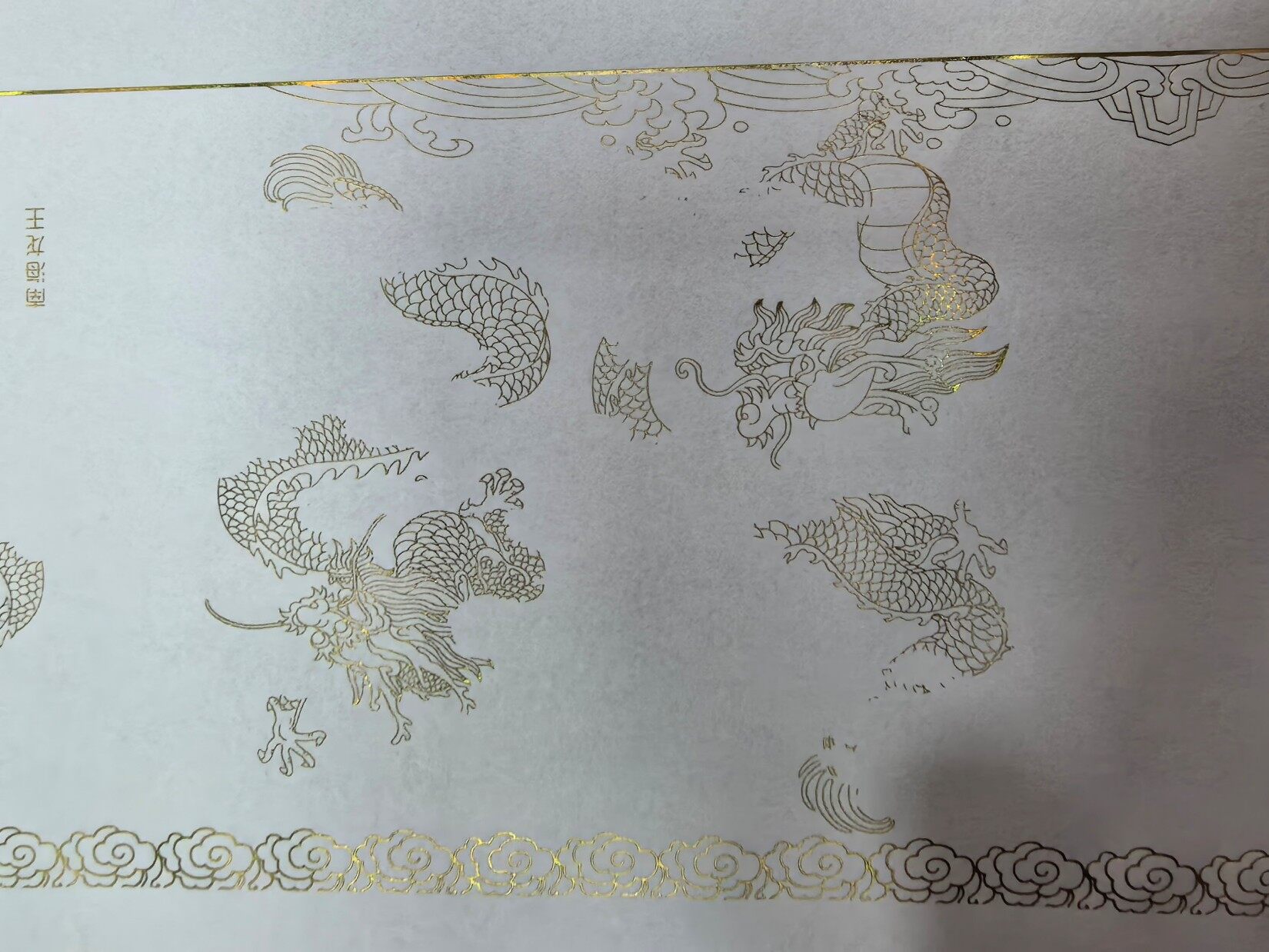

- Supports fine-pattern stamping with a reduced risk of breakpoints
- In specific applications, an overall yield improvement of 2% or more may be achievable
- Supports stamp-then-print process with high brightness and durable stamping surface
- High-precision stamping cylinder with shaft runout within ±0.005 mm
- Product changeover may be completed in approximately 2 hours under specified configurations and prepared operating conditions
The exact performance figures are based on specific products, layouts, materials, machine configurations and operating conditions. Actual results may vary, and final performance is subject to project configuration and production verification.

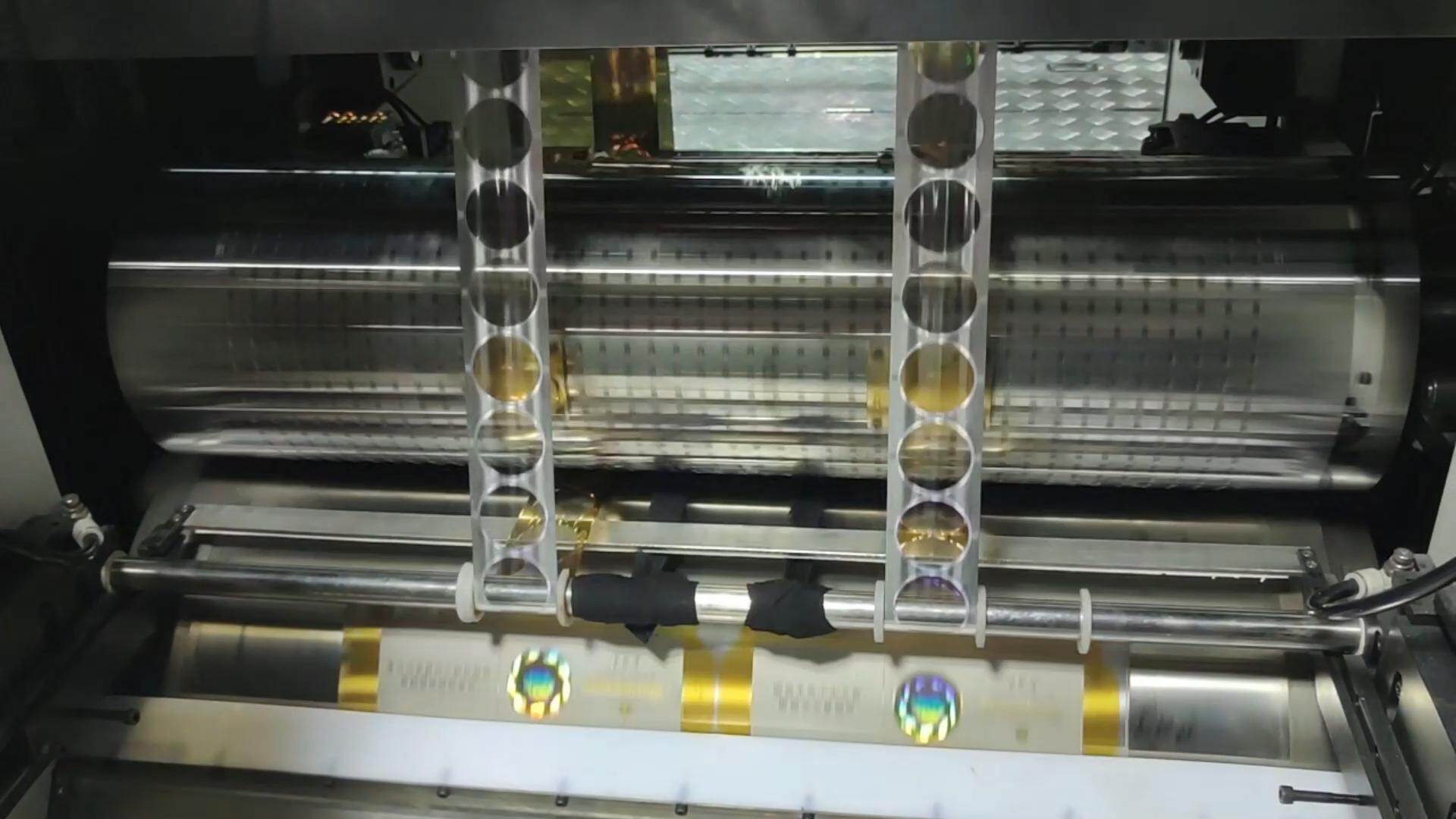

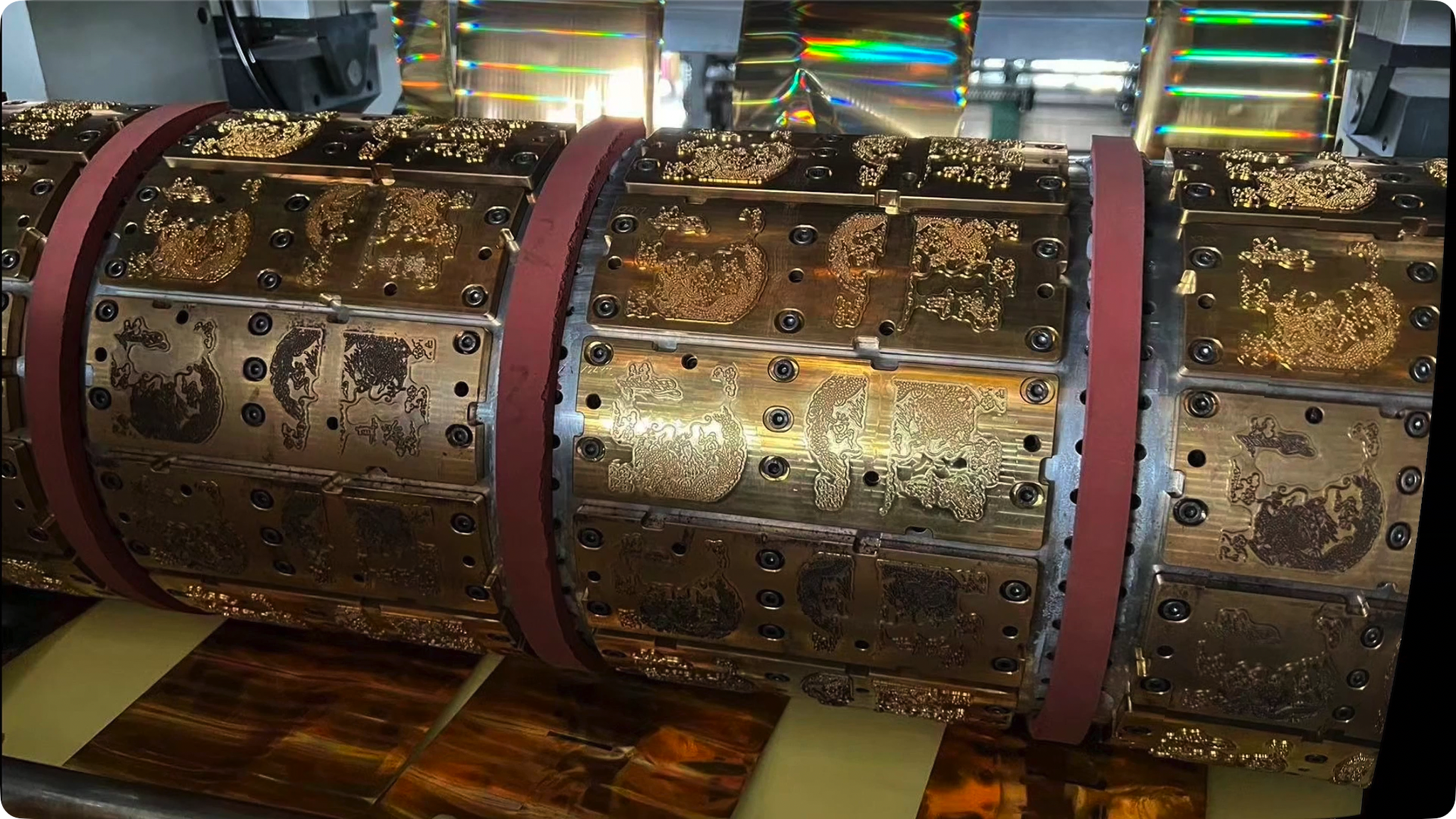

Equipment in Operation
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Sheet Size | 1,020 × 750 mm |
| Minimum Sheet Size | 545 × 390 mm |
| Maximum Stamping Area | 820 × 650 mm |
| Maximum Sheet Thickness | 0.4 mm |
| Minimum Sheet Thickness | 0.1 mm |
| Hot Stamping Cylinder Diameter | 300 mm |
| Impression Cylinder Diameter | 600 mm |
| Maximum Conventional Hot Foil Stamping Speed | Up to 8,000 sheets/h* |
| Maximum Registered Holographic Hot Foil Stamping Speed | 6,000–8,000 sheets/h* |
| Minimum Foil Width | 10 mm |
| Foil Roll Core Diameter | 3 in |
| Maximum Foil Roll Diameter | 400 mm |
| Conventional Hot Foil Stamping-to-Print Registration Accuracy | ±0.10 mm at 6,000 sheets/h |
| Longitudinal Registration Accuracy for Holographic Patterns | ±0.10 mm at 6,000 sheets/h |
| Lateral Registration Accuracy for Holographic Patterns | ±0.10 mm at 6,000 sheets/h |
| Maximum Hot Stamping Cylinder Temperature | 250 °C |
| Machine Noise Level | <80 dB |
| Machine Dimensions (L × W × H) | 10 × 5.5 × 3.5 m |
| Total Installed Power | 55 kW |
| Compressed Air Requirement | ≥6 mPa, 200 L/min |
| Machine Weight | 30 t |
* Maximum Conventional Hot Foil Stamping Speed: Depending on pattern position and quantity
* Maximum Registered Holographic Hot Foil Stamping Speed: Depending on pattern position and quantity
Specifications are representative values. Final configuration depends on your specific material, width, speed and process requirements.
How We Work Together
Initial requirements discussion
Material, sample and parameter review, where applicable
Technical solution and configuration proposal
Commercial quotation
Manufacturing and acceptance arrangements agreed for the project
Delivery, installation and support scope confirmed in the contract
