Rotary die-cutting roll line
This line is designed for high-volume rotary creping, scoring, and die-cutting of premium packaging, primarily cigarette packs. The roll-to-roll process delivers advantages in production speed, quality stability, makeready efficiency, and paper utilization.
For:For premium packaging manufacturers running large-scale production requiring rotary die cutting, embossing, and creasing.
What problem does it solveEnables high-speed roll-to-roll processing with stable registration and consistent production quality.
Key Features
- High-speed rotary die-cutting, creasing, and embossing for premium mass-production packaging
- Consistent production quality under suitable operating conditions
- More efficient paper usage compared to conventional traditional processes
- Control of creasing, embossing, and die-cutting elements
- Project-specific configuration tailored to product requirements and manufacturing process

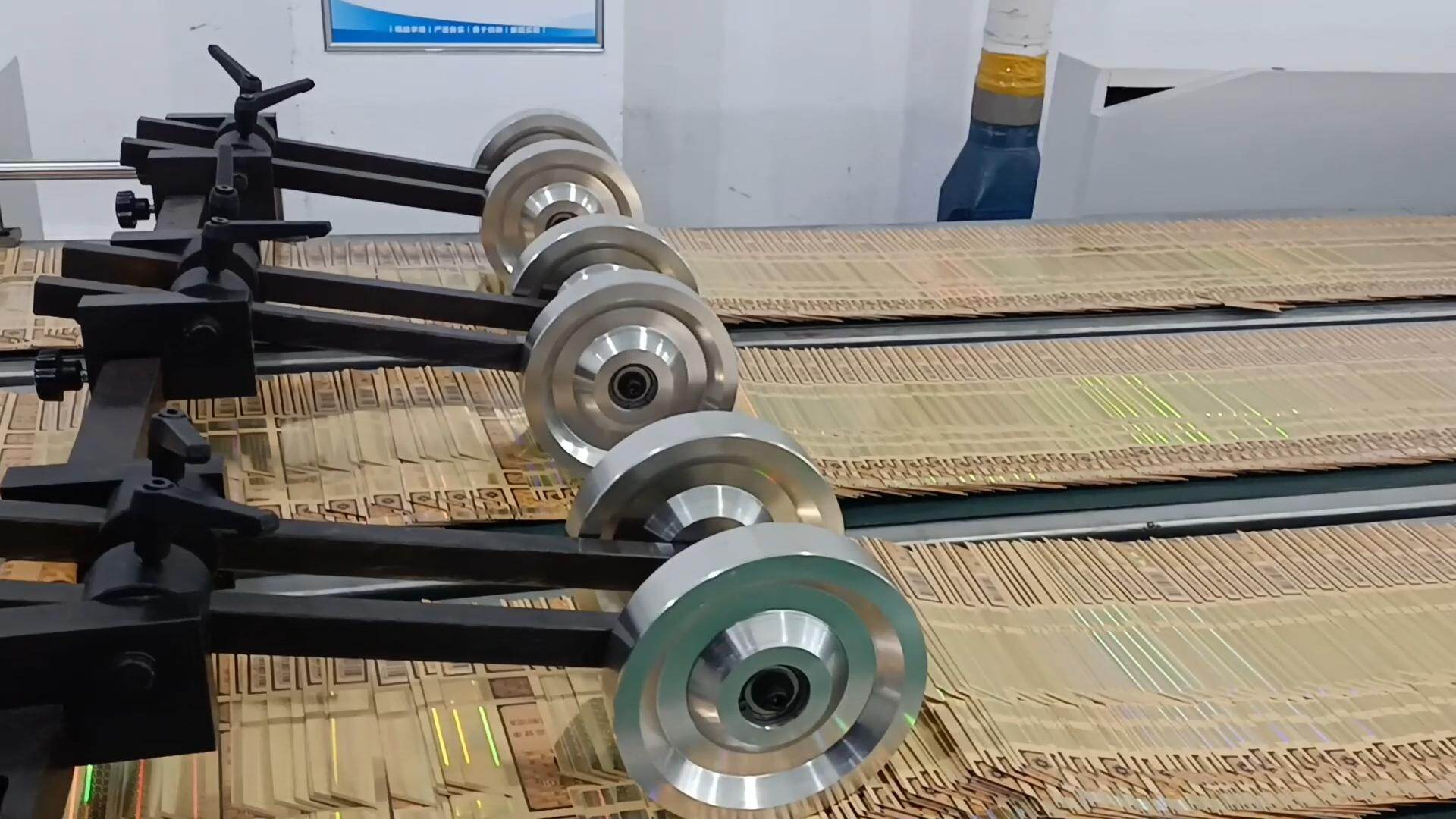

Equipment is in use
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum fabric width | 850 mm |
| Maximum print width | 820 mm |
| Minimum curtain width | 400 mm |
| Maximum roll diameter at unwind | 1 600 mm |
| Maximum roll weight for unwinding | 1 300 kg |
| Blade Position Correction Range | ±25 mm |
| Roll shaft diameter at unwinding and rewinding | 12 inches |
| Paper density range | 90–300 g/m² |
| Maximum mechanical speed | 150 m/min |
| Longitudinal registration accuracy for hot stamping, creasing, and die-cutting | Calibration accuracy: ±0,15 mm at 150 m/min |
| Cross-registration accuracy for embossing, creasing, and die-cutting | Calibration accuracy: ±0,15 mm at 150 m/min |
| Large-format sheet cutting accuracy | Accuracy within ±0,10 mm at 100–120 m/min |
The provided technical specifications are approximate. The final configuration depends on specific material, width, speed, and process requirements.
How We Work With You
Initial requirements discussion
Material, sample, and parameter analysis, if applicable
Technical Solution Development and Configuration Proposal
Business Proposal
Agreement on manufacturing and acceptance terms within the project
The scope of supply, installation, and technical support is confirmed by the contract.
